AI-powered radar-to-camera slew-to-cue processor. Connects 1 radar and 1–2 surveillance cameras into a coordinated active defense system — radar guidance with automated visual tracking.

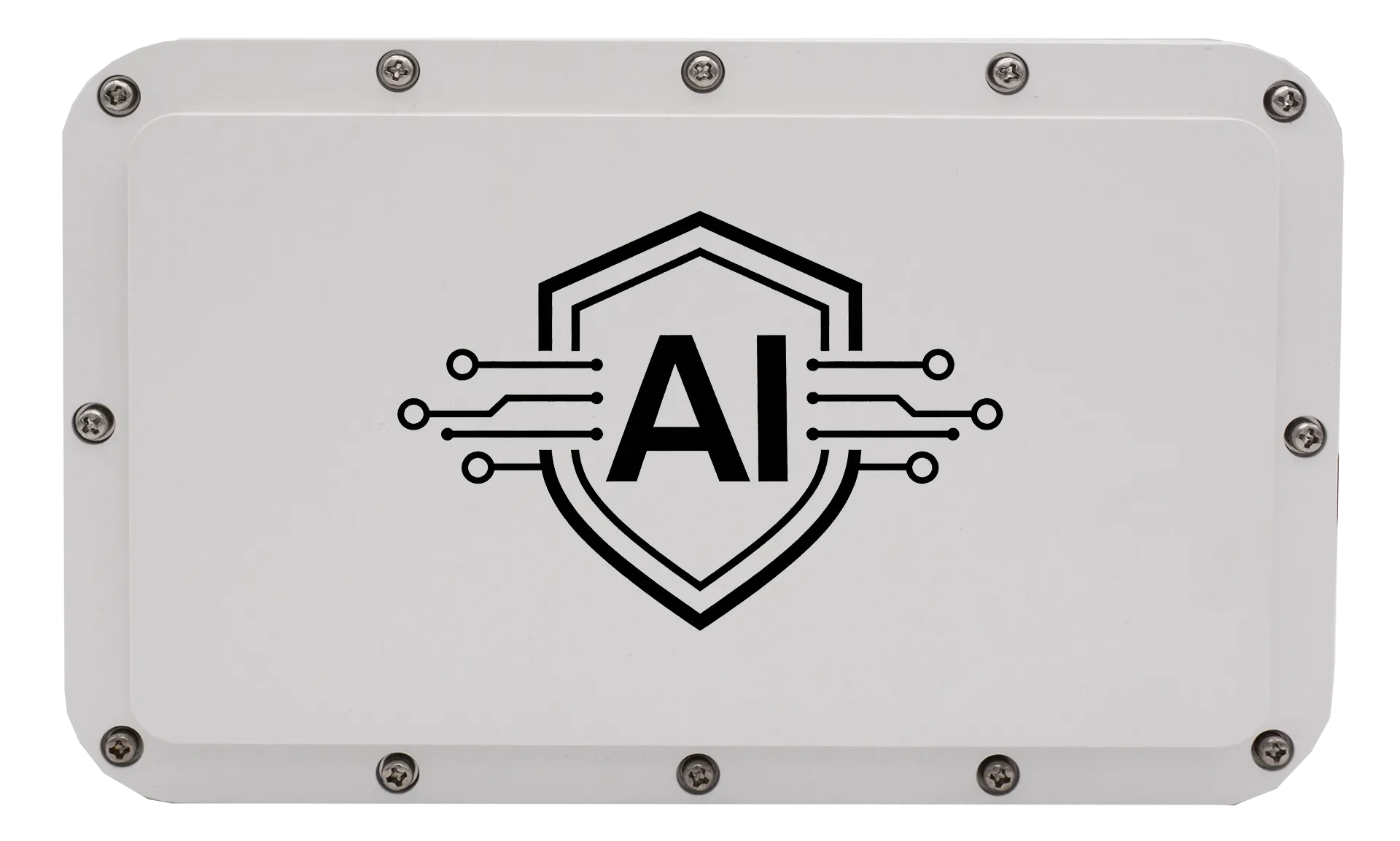

The Smart AI Box is a smart edge-computing terminal purpose-built for perimeter security. By connecting 1 radar and 1–2 surveillance cameras, it integrates otherwise independent devices into a coordinated, active defense system, empowering traditional monitoring with the intelligent capability of “radar guidance & automated visual tracking.”
At its core, the AI fusion engine synchronizes radar point cloud and video data in real time, applying deep learning algorithms to classify targets and fuse multi-sensor evidence. Through millisecond-level fusion, the Smart AI Box autonomously detects intrusion threats in all weather conditions, instantly triggers alarms, and coordinates PTZ cameras for precise tracking — dramatically improving response speed while achieving unmanned, intelligent perimeter surveillance.
Synchronizes millimeter-wave radar and video data within milliseconds, fusing radar point cloud trajectories with high-definition visual evidence for each intrusion event.
Powered by Jetson Orin Nano with 67 trillion operations per second. Deep learning algorithms enable real-time target classification, active learning, and adaptive environmental awareness.
Radar detects → AI box classifies → PTZ automatically slews to target → fused alarm output. End-to-end automation with zero human intervention, dramatically reducing response time.
Open protocols for seamless integration with any AxEnd radar and standard PTZ cameras. Built-in self-diagnosis ensures continuous operational readiness with password-protected security.
Simultaneously tracks and manages multiple targets, intelligently switching PTZ focus between intruders. Visual verification before alarm ensures near-zero false alert rate.
Operates reliably from −13°F to 158°F with just 12W typical power. Immune to light, rain, dust, fog, and smoke. Purpose-built for continuous, unattended perimeter security.
Plug the Smart AI Box into any AxEnd single-radar deployment — area, perimeter, or fence — and instantly transform a passive detection system into an active, radar-guided defense network with automated camera slew-to-cue.
Edge-computing AI platform built on Jetson Orin Nano
| AI & Computing | |
| Processor | Jetson Orin Nano |
| NPU Computing Power | 67 TOPs |
| Self-Diagnosis | ✓ |
| Deep Learning Algorithm | ✓ |
| Sensor Integration | |
| Radar Input | 1 channel |
| Camera Input | 1× PTZ Speed Dome, or 2× (1080P Bullet + PTZ Speed Dome), H.264 |
| Power & Connectivity | |
| Power Supply | DC 12V 3A |
| Power Consumption | 12 W (typical) |
| Communication Interface | Ethernet 10/100/1000M auto-negotiating |
| Environmental | |
| Operating Temperature | −13°F ~ 158°F |
| Physical & Compliance | |
| Dimension (in) | 5.19 × 8.34 × 2.22 |
| Weight (lb) | 2.95 |
| Security | Password protected |
| Certification | CE, FCC |
AI-powered multi-stage decision-making, massive MIMO FMCW radar, and seamless multi-sensor integration — working together to deliver reliable, false-alarm-free perimeter protection.
AI-facilitated algorithm distinguishes genuine intruders from wind, plants, small animals and shadows — dramatically reducing false alarm rates in any environment.
Intelligent adaptation to surrounding environment minimizes false alerts caused by weather, vegetation, and non-human movement patterns.
Multi-stage decision hierarchy validates threats across radar, AI, and optional camera verification — ensuring only genuine intrusions trigger an alarm.
Large-scale antenna array with digital beam forming delivers precise angle resolution and multi-target tracking across wide coverage areas.
Frequency modulated continuous wave radar provides stable, reliable detection with instant distance, speed, and angle data — low probability of intercept.
IP66/IP67-rated rugged construction for reliable operation in rain, snow, dust, fog, and extreme temperatures from −40°F to +158°F.
Radar detects and classifies with high sensitivity; camera provides instant visual confirmation. The VF series combines both in a single unit for maximum awareness.
Ethernet, RS485, and relay interfaces with TCP/IP protocol allow seamless integration with existing CCTV, access control, and alarm management systems.
Most models support Power over Ethernet (PoE) — one cable for both data and power. Modular design for fast installation and simple field maintenance.
Integrated three-layer architecture — from detection to analysis to action — all coordinated through a single intelligent platform.
Multi-sensor detection across the perimeter
AI-powered intelligent threat assessment
Automated response and threat management
User-friendly interface for real-time perimeter monitoring, device management, and incident analysis — all from a single map-based dashboard.
