FMCW millimeter-wave radar designed for fixed-site outdoor perimeter protection. Detects, tracks and classifies walkers, vehicles, and boats at long range with high precision — immune to darkness, dust, fog, and rain.
AxEnd’s perimeter security radar series is purpose-built for outdoor intrusion detection using advanced FMCW millimeter-wave technology and massive MIMO antenna arrays. Each radar delivers real-time distance, speed, and angle data for every target — walkers, vehicles, and boats — with AI-powered classification that distinguishes genuine threats from environmental noise. Immune to darkness, dust, fog, and rain, the radar provides continuous 24/7 protection in the harshest conditions.
Detection angles range from 20° to 120° with coverage up to 1,600 m. Deployed across ports, airports, prisons, oil depots, power plants, railways, and border defense — one platform, endless applications.
The radar is immune to many environmental conditions, such as light, rain, dust, fog, and smoke. Built with an industry-certified rugged design, it ensures stable performance and continuous protection even in the harshest environments.
AxEnd perimeter security radar series redefines outdoor intrusion detection with advanced FMCW millimeter-wave technology and AI-powered intelligent detection. From border defense to critical infrastructure, our radars deliver continuous, precise, and reliable protection —— no matter the environment.
Real-time FMCW radar detection with AI-powered signal processing delivers precise distance, speed, and angle data for every target. Deep learning algorithms precisely classify intrusion targets —— distinguishing humans from vehicles, animals, and environmental noise —— for dramatically improved detection accuracy.
Powered by advanced millimeter-wave radar technology, our systems provide continuous active monitoring regardless of environmental conditions —— rain, fog, snow, dust, or complete darkness. No external lighting required. No weather-related downtime.
Ultra-high detection sensitivity combined with intelligent signal processing achieves industry-leading intrusion detection and recognition rates. AI-powered filtering effectively eliminates false triggers from wind, vegetation, small animals, and environmental fluctuations —— approaching zero false alarms.
User-friendly interface and modular design enable rapid installation with minimal training. Open-architecture protocols (Ethernet / RS485) ensure seamless integration with existing security systems —— no proprietary lock-in, no complex configuration.
Compared to traditional infrared fences, vibration sensors, and camera-only solutions, AxEnd radar delivers superior detection accuracy, broader coverage, and true all-weather reliability —— all at a competitive total cost of ownership.
Unlike cameras that fail in darkness or glare, and infrared fences that trigger false alarms in rain and fog, AxEnd radar operates continuously 24/7/365 in all environmental conditions —— day and night, rain or shine.
Radar detects movement without capturing images or video, making it ideal for privacy-sensitive areas —— embassies, military bases, critical infrastructure sites, and facilities where camera surveillance is restricted.
Simultaneously track up to 32 targets with precise distance, speed, and angle data. Advanced localization enables instant alarm triggering with precise location data —— no blind spots, no guesswork.
Multi-spec series design with detection angles from 20° to 120° and ranges from 60 m to 1,600 m. Deployed across ports, rivers, airports, prisons, oil depots, power plants, railways, and border/coastal defense —— one platform, endless applications.
Strong resistance to electromagnetic interference ensures stable, reliable performance even in dense signal environments. Unlike traditional RF sensors, AxEnd radar maintains detection accuracy and low false-alarm rates in the presence of competing signals, radio noise, and multi-path reflections.
From wide-area surveillance to long-range water security, our unified platform spans Area Security, Perimeter Security, and Water Security — covering all your outdoor protection needs. One vendor, one interface, one maintenance contract —— simplified procurement and lifecycle management.
FMCW millimeter-wave radar sends and receives electromagnetic signals to detect, track, and classify objects in real time — day or night, in any weather.
The radar transmits a continuous frequency-modulated millimeter-wave signal. The changing frequency enables precise distance measurement.
When the signal hits an object, it reflects back. The radar captures these echoes to determine distance, speed, and angle of the target.
Deep learning algorithms analyze the reflected signals, classifying targets and filtering out false alarms from environmental noise.
Detected intrusions trigger real-time alerts with precise location data. Multi-target tracking maintains continuous awareness of all moving objects.
From wide-area surveillance to water security, our perimeter radar portfolio delivers precision detection across every outdoor scenario.

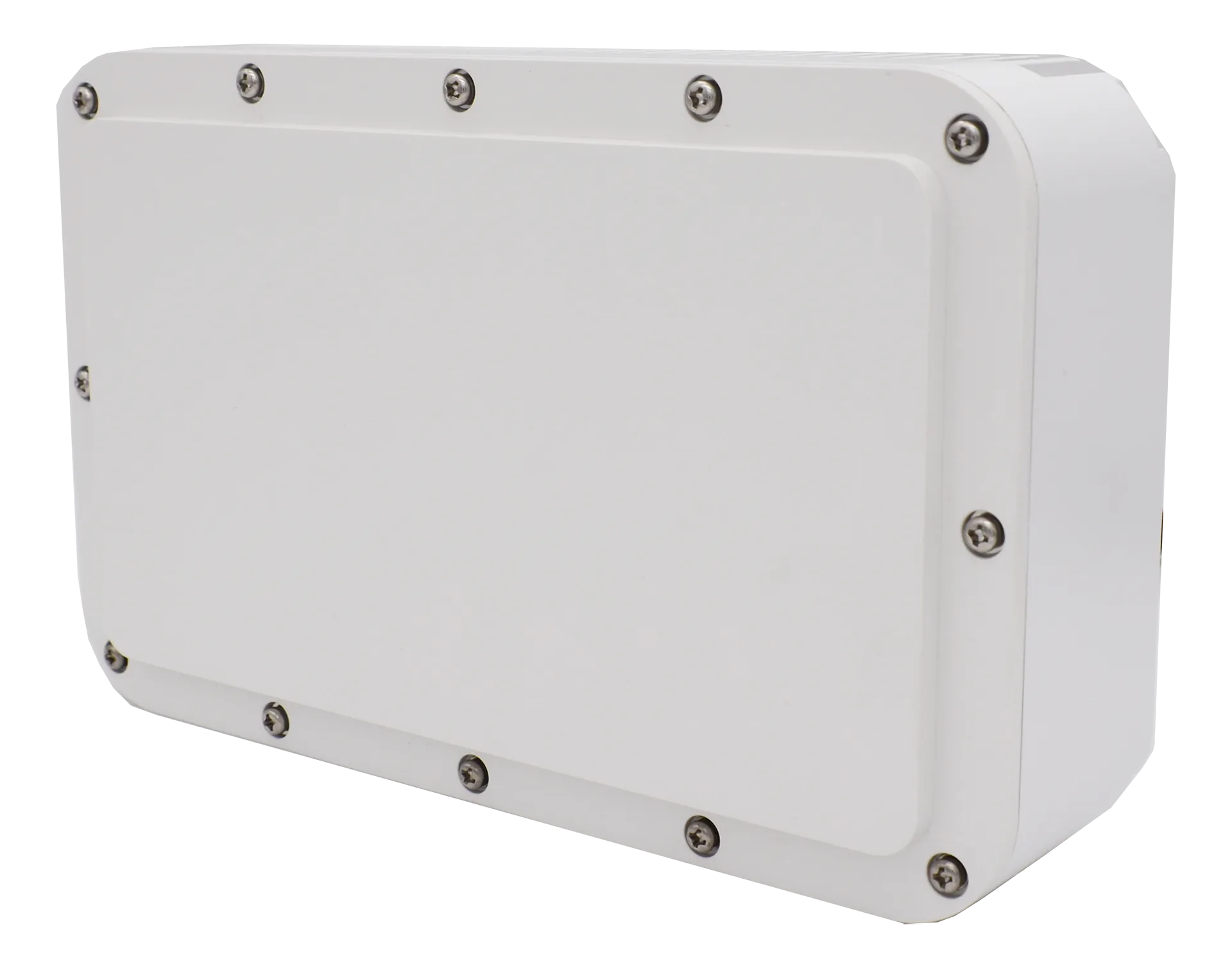

| Model | RA500 |
RA200 |

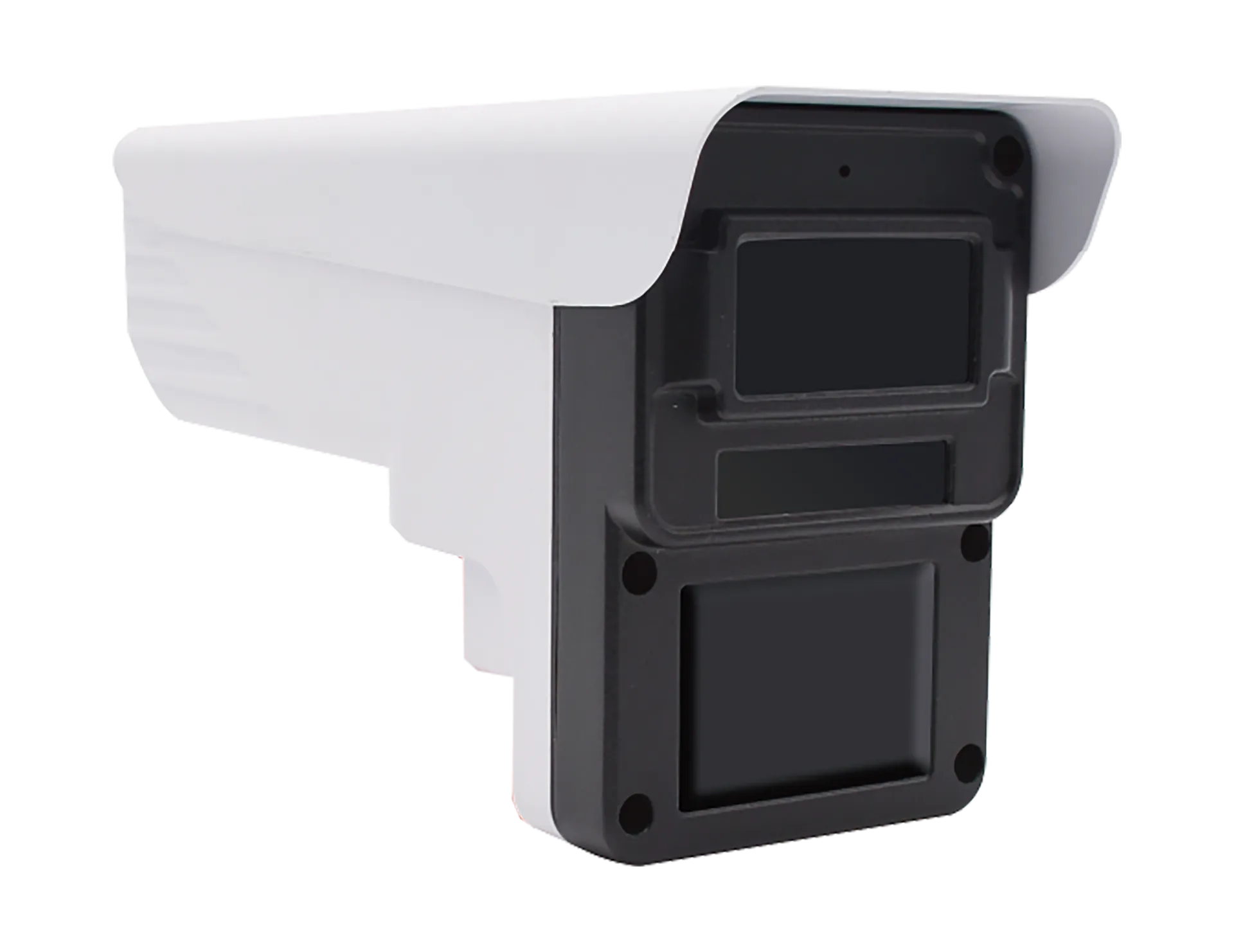

RA60 |
|---|---|---|---|
| Detection and Accuracy | |||
| Max dection range | 1650 ft for walkers and 2300 ft forvehicles | 700 ft for walkers and 1000 ft for vehicles | 200 ft (walkers and vehicles) |
| Range accuracy | 3 ft | ||
| Scan type | 5 ft | 5 ft | 6 ft |
| Maximum detectable target velocity | 30 m/s | 30 m/s | 20 m/s |
| Field of view | ± 60° (horizontal)± 7.5° (vertical) | ± 60° (horizontal)± 7.5°(vertical) | ± 60° (horizontal)± 10° (vertical) |
| Angular accuracy | ± 1° | ||
| Max simutaneous tracking | 32 | 32 | 16 |
| Radar and performance | |||
| Radar type | Frequency Modulated Continuous Wave (FMCW) | ||
| Frequency band | 24GHz | 24GHz | 61.5GHz |
| Tx/Rx channels | MIMO | MIMO | 2Tx/4Rx |
| Power requirement | |||
| Power supply | DC 12V 2A/POE | DC 12V 2A/POE | DC12V 1A/POE |
| Power consumption | 20W | 20W | 3.8W |
| Network | |||
| Communication interface | Ethernet / RS485 | Ethernet / RS485 | Ethernet |
| Refresh rate | 8Hz | 8Hz | 14Hz |
| Alarm output | NO/NC relay×1; GPIO×1 | ||
| Environmental | |||
| IP rating | IP66 | ||
| Working temperature | -40~158°F | -40~158°F | -4~140°F |
| Recommended mounting height | 6~13 ft | 6~13 ft | 10 ft |
| Dimension and weight | |||
| Dimension (in) | 5.2×8.3×2.2 | 5.2×8.3×2.2 | 8.6×3.5×5 |
| Weight (lb) | 3.6 | 3.6 | 1.4 |
| Model | RP500 |
AXPR200-P |
AXRP200-L |
|---|---|---|---|
| Detection and Accuracy | |||
| Max dection range | 1650 ft (walkers and vehicles) | 1150 ft for walkers and 1650 ft for vehicles | 750 ft for walkers and 1000 ft for vehicles |
| Range accuracy | 3 ft | ||
| Scan type | 5 ft | ||
| Maximum detectable target velocity | 30 m/s | ||
| Field of view | ± 10° (horizontal)± 7.5°(vertical) | ± 10° (horizontal)± 6.5°(vertical) | ± 10° (horizontal)± 6.5°(vertical) |
| Angular accuracy | ± 1° | ||
| Max simutaneous tracking | 32 | ||
| Radar and performance | |||
| Radar type | Frequency Modulated Continuous Wave (FMCW) | ||
| Frequency band | 24GHz | ||
| Tx/Rx channels | MIMO | ||
| Power requirement | |||
| Power supply | DC 12V 2A/POE | ||
| Power consumption | 20W | 15W | 9W |
| Network | |||
| Communication interface | Ethernet / RS485 | ||
| Refresh rate | 8Hz | ||
| Alarm output | NO/NC relay×1; GPIO×1 | ||
| Environmental | |||
| IP rating | IP66 | ||
| Working temperature | -40~158°F | ||
| Recommended mounting height | 6~13 ft | 5~13 ft | 5~13 ft |
| Dimension and weight | |||
| Dimension (in) | 5.2×8.3×2.2 | ||
| Weight (lb) | 3.6 | ||
| Model | RS04H |
RS16H |
|---|---|---|
| Detection and Accuracy | ||
| Max dection range | 1320 ft (both) | 5200 ft(boat longer than 25 ft)/2600 ft(boat shorter than 25 ft) |
| Range accuracy | ±6 ft | |
| Range resolution | 6 ft | |
| Maximum detectable target velocity | 0.16 ~ 65.6 ft/s | |
| Field of view | ±60° (Horizontal),±7.5° (Vertical) | |
| Angular accuracy | ± 1° | |
| Max simutaneous tracking | 16 | |
| Radar and performance | ||
| Radar type | Frequency Modulated Continuous Wave (FMCW) | |
| Frequency band | 24GHz | |
| Power requirement | ||
| Power supply | DC 12V 2A / POE | |
| Power consumption | 12W | 20W |
| Network | ||
| Communication interface | Ethernet / RS485 | |
| Refresh rate | 8Hz | |
| Alarm output | NO/NC relay×1; GPIO×1 | |
| Environmental | ||
| IP rating | IP66 | |
| Working temperature | -40~158°F | |
| Recommended mounting height | 16 ~ 32 ft | |
| Dimension and weight | ||
| Dimension (in) | 5.2×8.3×2.2 | |
| Weight (lb) | 3.6 | |
AI-powered multi-stage decision-making, massive MIMO FMCW radar, and seamless multi-sensor integration — working together to deliver reliable, false-alarm-free perimeter protection.
AI-facilitated algorithm distinguishes genuine intruders from wind, plants, small animals and shadows — dramatically reducing false alarm rates in any environment.
Intelligent adaptation to surrounding environment minimizes false alerts caused by weather, vegetation, and non-human movement patterns.
Multi-stage decision hierarchy validates threats across radar, AI, and optional camera verification — ensuring only genuine intrusions trigger an alarm.
Large-scale antenna array with digital beam forming delivers precise angle resolution and multi-target tracking across wide coverage areas.
Frequency modulated continuous wave radar provides stable, reliable detection with instant distance, speed, and angle data — low probability of intercept.
IP66/IP67-rated rugged construction for reliable operation in rain, snow, dust, fog, and extreme temperatures from −40°F to +158°F.
Radar detects and classifies with high sensitivity; camera provides instant visual confirmation. The VF series combines both in a single unit for maximum awareness.
Ethernet, RS485, and relay interfaces with TCP/IP protocol allow seamless integration with existing CCTV, access control, and alarm management systems.
Most models support Power over Ethernet (PoE) — one cable for both data and power. Modular design for fast installation and simple field maintenance.
Integrated three-layer architecture — from detection to analysis to action — all coordinated through a single intelligent platform.
Multi-sensor detection across the perimeter
AI-powered intelligent threat assessment
Automated response and threat management
User-friendly interface for real-time perimeter monitoring, device management, and incident analysis — all from a single map-based dashboard.
