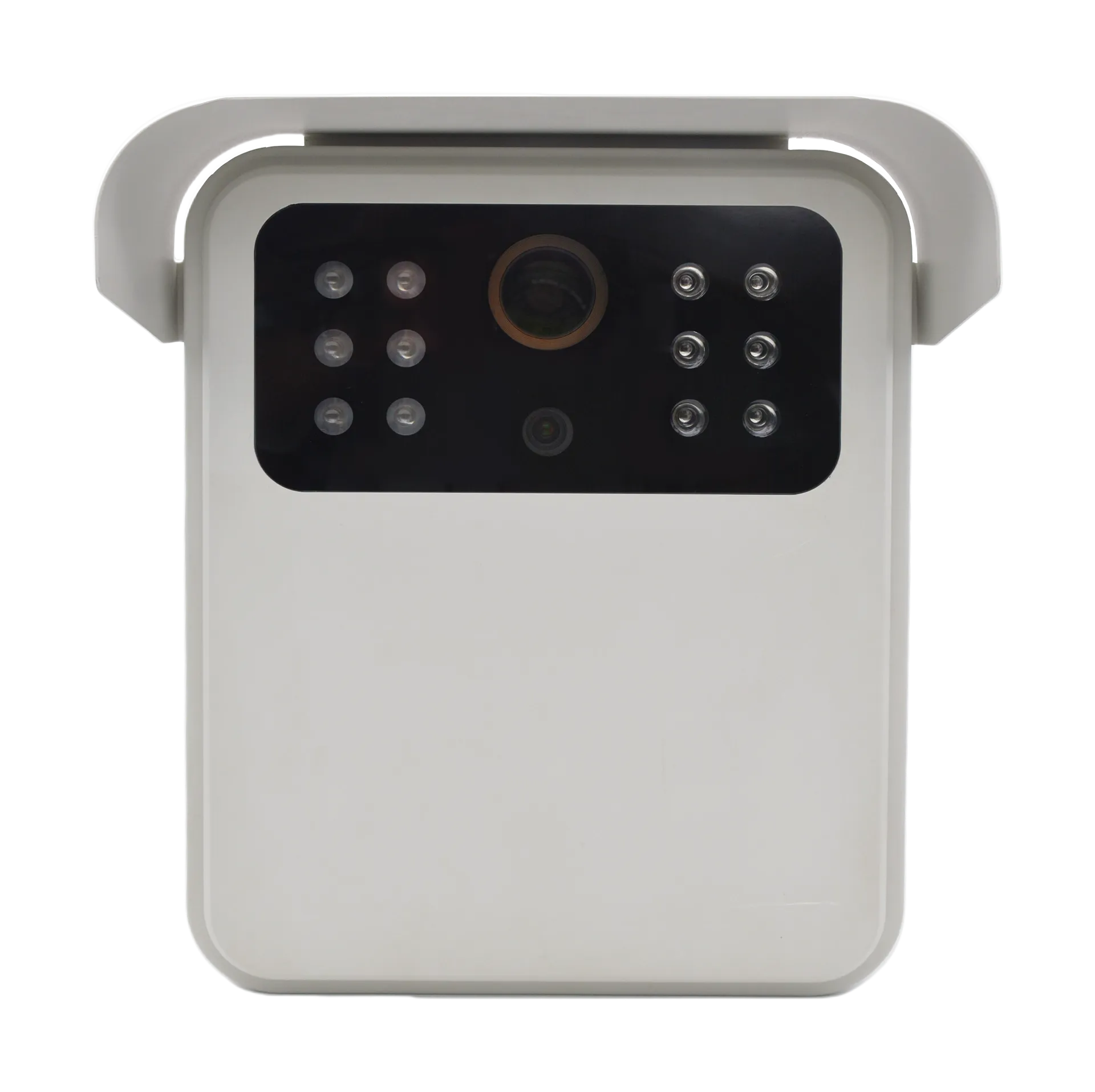

Multi-sensor surveillance terminal that combines radar, HD camera, and edge AI in a single compact unit. Radar sensitivity paired with visual confirmation — detects, tracks, and alerts in real time with near-zero false alarms.
AxEnd’s radar-camera integrated terminal combines FMCW radar, HD camera, and edge AI in a single compact unit. The radar provides continuous detection of walkers and vehicles with real-time distance, speed, and angle data — while the built-in camera delivers instant visual confirmation of every alarm. AI multi-stage decision-making fuses radar tracks with video feeds to virtually eliminate false alarms from wind, vegetation, and small animals, achieving near-zero false alarm rates.
Three models cover short to long-range perimeter protection from 130 ft to 750 ft walker detection. All-in-one design eliminates external servers and complex cabling — simply mount and connect.
The radar is immune to many environmental conditions, such as light, rain, dust, fog, and smoke. Built with an industry-certified rugged design, it ensures stable performance and continuous protection even in the harshest environments.
Smart and affordable surveillance terminal that adopts multi-sensor and multi-stage decision-making strategy to maximize situational awareness. Radar sensitivity paired with visual camera confirmation — all in a single compact unit.
AI-empowered algorithm eliminates false positives from wind, plants, small animals, and shadows. Smart target classification distinguishes genuine intruders from environmental noise for near-zero false alarm rates.
Radar, HD camera, and edge-computing module all inside a single compact unit. Detect and track walkers and vehicles with real-time speed, distance, and visual confirmation.
Modular design with open-architecture communication protocols. User-friendly interface for easy deployment and integration into existing VMS and security systems.
Compact single-unit design eliminates the need for external servers, complex cabling, or multi-vendor maintenance. Cost-effective perimeter protection for sites of any size.
Each terminal integrates radar sensor, HD camera, and edge AI into a single unit. When an intruder enters the defense zone, the system actively detects, visually confirms, classifies, and alerts — all on-device, no external server required.
When an intruder enters the defense zone, the radar sensor actively scans and outputs real-time target location data — distance, speed, and angle.
The built-in HD camera captures high-definition video of the intrusion zone, providing instant visual evidence synchronized with radar tracking data.
Fused radar and camera data feeds into the multi-stage AI engine, which accurately identifies the intrusion type — human, vehicle, or nuisance — and records the entire event with time-stamped evidence.
Alarm triggers on the security management platform with full context — location, video recording, and target classification — enabling proactive, all-around perimeter surveillance.
Traditional camera-only systems struggle with false alarms and environmental limitations. Radar-camera fusion solves both.
Most competitors sell radar and camera as separate components requiring external servers. AxEnd packs everything into one device.
No separate radar, camera, and server boxes to mount and wire. A single unit replaces an entire equipment rack.
No need for external servers, complex cabling, or multi-vendor maintenance. Deploy and forget.
Add terminals as your site grows. Each unit is self-contained — no central server bottleneck.
Three models covering short to long-range perimeter protection — from 130 ft to 750 ft walker detection.
| Model | VF200 |

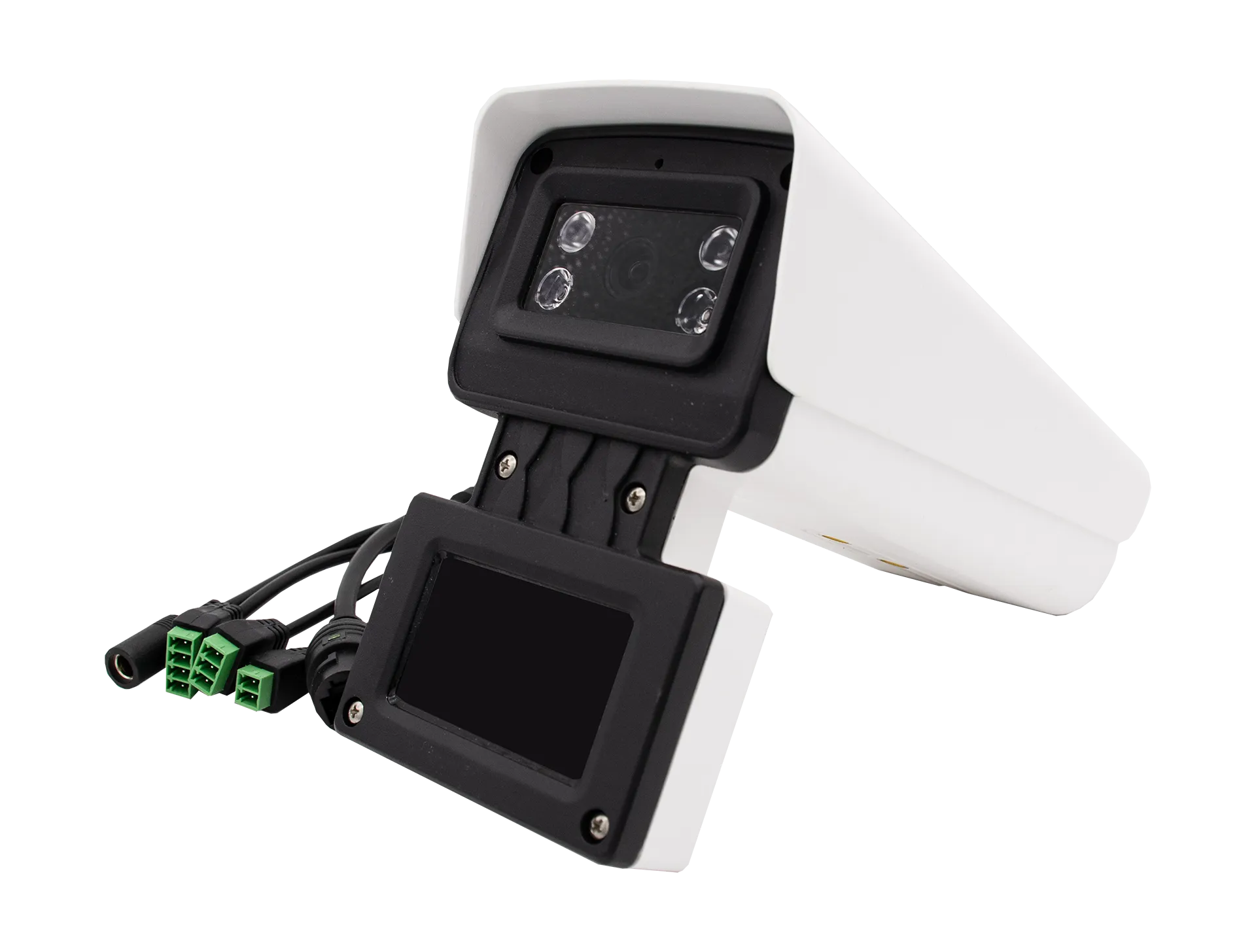

VF060-F1 |
VF060-F2 |
|---|---|---|---|
| Max Detection Range (Walker) | 750 ft | 130 ft | 200 ft |
| Range Accuracy | ±3.2 ft | ±3.0 ft | ±3.0 ft |
| Max Detectable Velocity | 98.4 ft/s | 65.6 ft/s | 65.6 ft/s |
| Max Simultaneous Tracking | 32 | 8 | 8 |
| Radar | |||
| Radar Type | FMCW MIMO Radar | ||
| Frequency Band | 24 GHz | 61.5 GHz | 61.5 GHz |
| Range Accuracy | ±3 ft | ||
| FOV (Horizontal × Vertical) | ±10° × ±6.5° | ±45° × ±10° | ±45° × ±10° |
| Angular Accuracy | ±1° | ±0.5° | ±0.5° |
| Camera | |||
| Camera | 2-Channel, HD 2160 8MP 3840x2160 @25fps H.264, H.265 1/2.8" 8MP CMOS, 0.0005 lux, F2.0 |
1-Channel, HD 1080 2MP 1920x1080 @25fps H.264 Infrared Supplement Light (Day & Night) 1/2.9" 2MP CMOS, 0.011 lux, F1.6 |
1-Channel, HD 1080 2MP 1920x1080 @25fps H.264 Infrared Supplement Light (Day & Night) 1/2.9" 2MP CMOS, 0.011 lux, F1.6 |
| Field of View (Horizontal) | 41.5° (near focus); 8° (far focus) | 83.8° | 39.8° |
| Field of View (Vertical) | 23.5° (near focus); 4.5° (far focus) | 42.7° | 22.8° |
| Power & General | |||
| Power Supply | DC 24V 5A | DC 12V 3A / POE | DC 12V 3A / POE |
| Power Consumption | 70W (peak) | 14W (typical), 30W (peak) | 14W (typical), 30W (peak) |
| Network Protocol | TCP/IP | ||
| Communication Interface | 10/100/1000M Auto-Negotiating Ethernet Port, RJ45 Relay ×1 (0.5A/125VAC) |
10/100/1000M Auto-Negotiating Ethernet Port, RJ45 RS485 (115200 Modbus) Relay ×1 (0.5A/125VAC) GPIO Optocoupler ×2 (10mA/5V, Opto-isolated 2500Vrms) |
10/100/1000M Auto-Negotiating Ethernet Port, RJ45 RS485 (115200 Modbus) Relay ×1 (0.5A/125VAC) GPIO Optocoupler ×2 (10mA/5V, Opto-isolated 2500Vrms) |
| IP Rating | IP67 | IP66 | IP66 |
| Mounting Height | 5 ~ 13 ft | 6 ~ 10 ft | 6 ~ 10 ft |
| Working Temperature | -40 ~ 158°F | -4 ~ 140°F | -4 ~ 140°F |
| Dimensions | 12.4 × 10.2 × 7.3 in | 8.6 × 3.5 × 5.6 in | 8.6 × 3.5 × 5.6 in |
| Weight | 11 lb | 1.4 lb | 1.4 lb |
AI-powered multi-stage decision-making, massive MIMO FMCW radar, and seamless multi-sensor integration — working together to deliver reliable, false-alarm-free perimeter protection.
AI-facilitated algorithm distinguishes genuine intruders from wind, plants, small animals and shadows — dramatically reducing false alarm rates in any environment.
Intelligent adaptation to surrounding environment minimizes false alerts caused by weather, vegetation, and non-human movement patterns.
Multi-stage decision hierarchy validates threats across radar, AI, and optional camera verification — ensuring only genuine intrusions trigger an alarm.
Large-scale antenna array with digital beam forming delivers precise angle resolution and multi-target tracking across wide coverage areas.
Frequency modulated continuous wave radar provides stable, reliable detection with instant distance, speed, and angle data — low probability of intercept.
IP66/IP67-rated rugged construction for reliable operation in rain, snow, dust, fog, and extreme temperatures from −40°F to +158°F.
Radar detects and classifies with high sensitivity; camera provides instant visual confirmation. The VF series combines both in a single unit for maximum awareness.
Ethernet, RS485, and relay interfaces with TCP/IP protocol allow seamless integration with existing CCTV, access control, and alarm management systems.
Most models support Power over Ethernet (PoE) — one cable for both data and power. Modular design for fast installation and simple field maintenance.
Integrated three-layer architecture — from detection to analysis to action — all coordinated through a single intelligent platform.
Multi-sensor detection across the perimeter
AI-powered intelligent threat assessment
Automated response and threat management

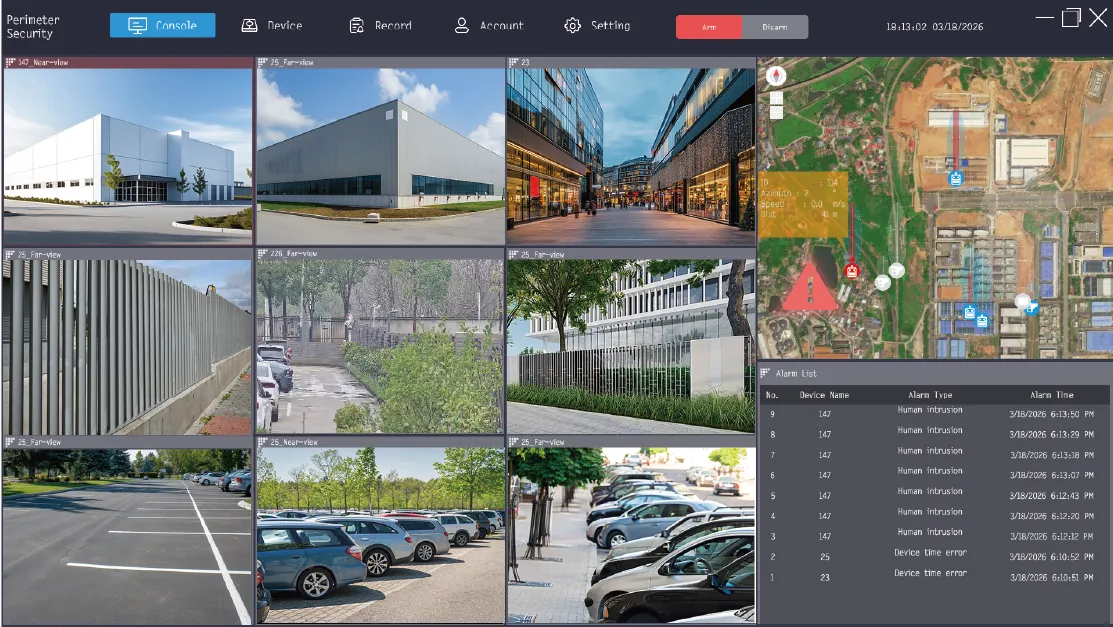

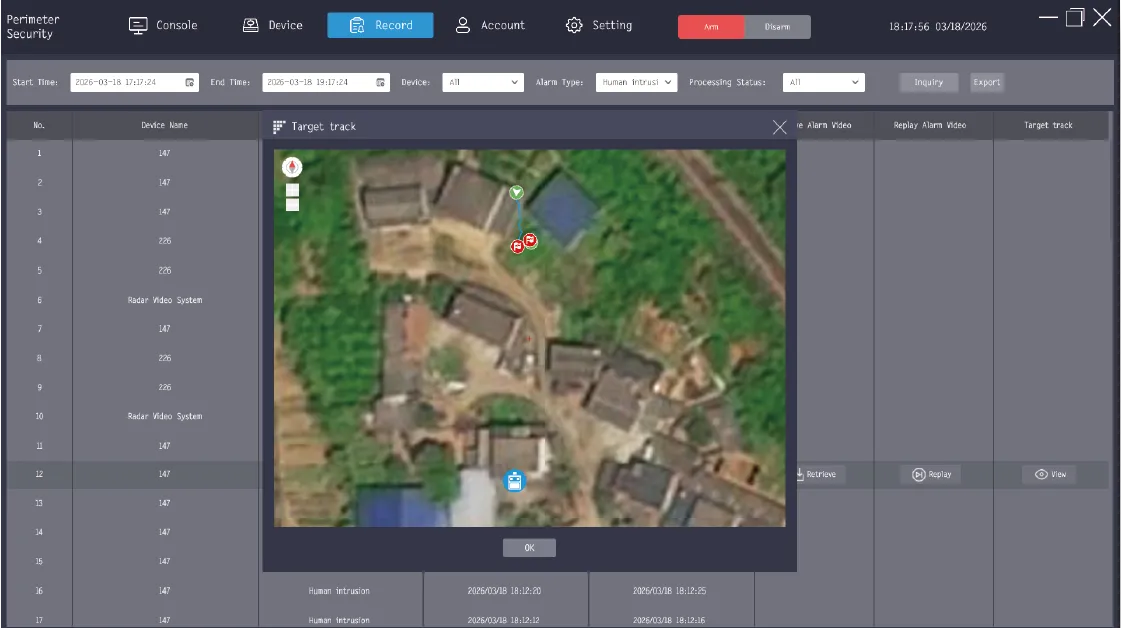

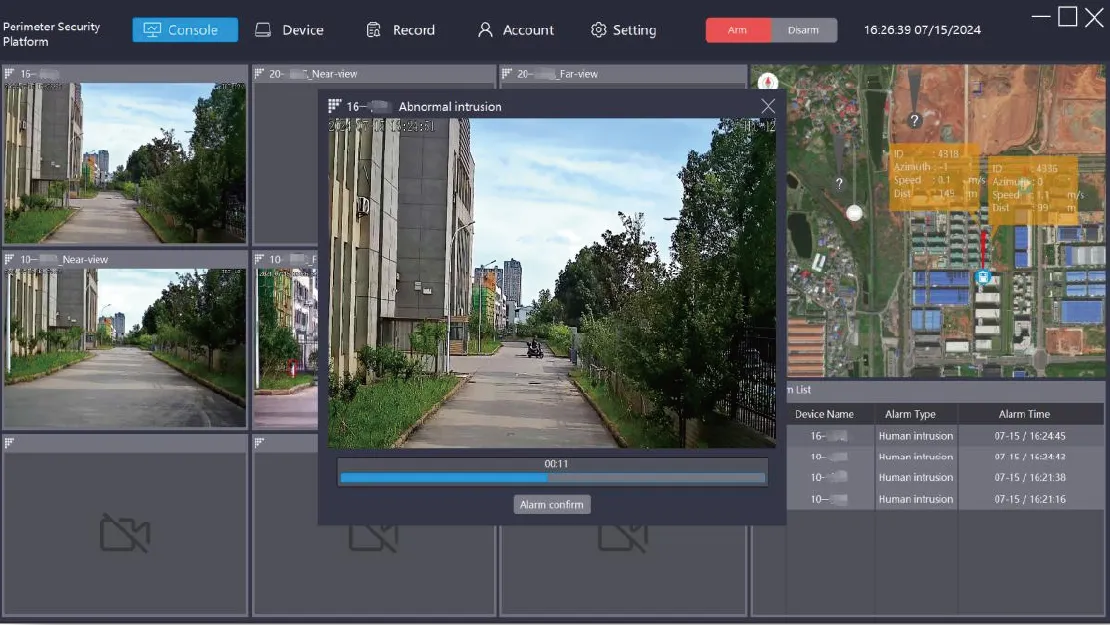

User-friendly interface for real-time perimeter monitoring, device management, and incident analysis — all from a single map-based dashboard.
